LP16 Plug (7-Pin) to Bare Wire

Product image 1
Product image 2
Product image 3
Product image 4

LP16 Plug (7-Pin) to Bare Wire

DESCRIPTION

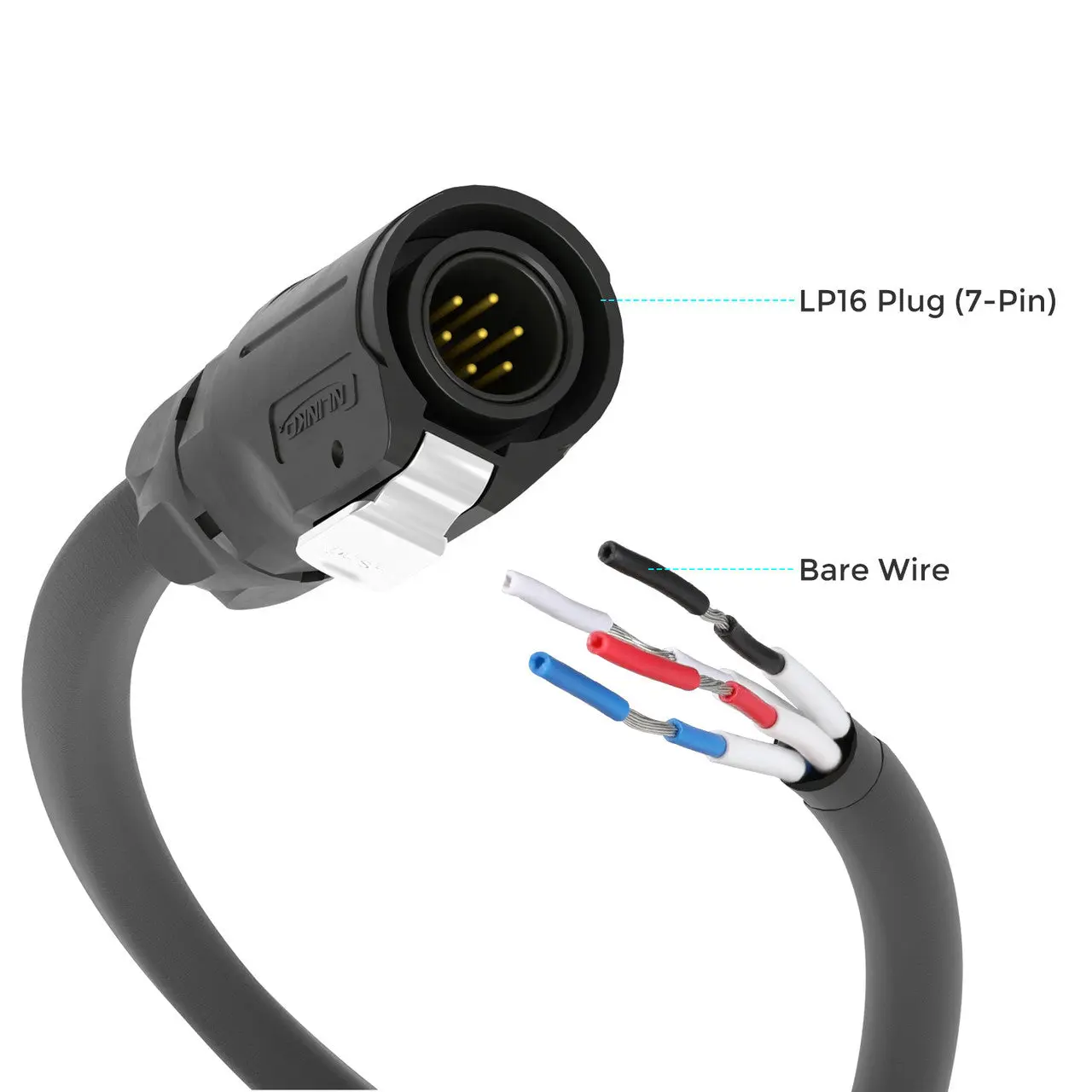

【Specially Designed to Work with Renogy REGO Products】 One end of the communication cable has a professional 7 Pin LP16 connector, which can be connected to the CAN terminal of your REGO series products. And the other end is a bare wire for customization, you can crimp any appropriate connector that matches the RV-C bus on your RV.
【Plug&Play Operation】 The quick plug design of the 7 Pin LP16 Plug allows one-hand plug/unplug, just tap to release, ensuring simple, fast, and stable operation and connection.
【Excellent Performance】 The wire is made with UL-compliant 22AWG high-purity oxygen-free tinned stranded conductors, twisted in pairs, ensuring maximum conductivity. The contact core of the terminator plug uses 3”m gold plating guaranteeing stable and efficient electrical performance all the time.
【Durable Design 】 The terminator plug adopts high-strength structural materials, a pressure-resistant structure design, can withstand greater vibration and shock, good insulation, low creep, and anti-aging. IP65-rated outdoor waterproof performance satisfies the high-quality performance required under harsh situations.
【Safety and Environment Friendly】 All materials of the terminator plug are RoHS compliant, preventing the risks posed to human health and the environment.

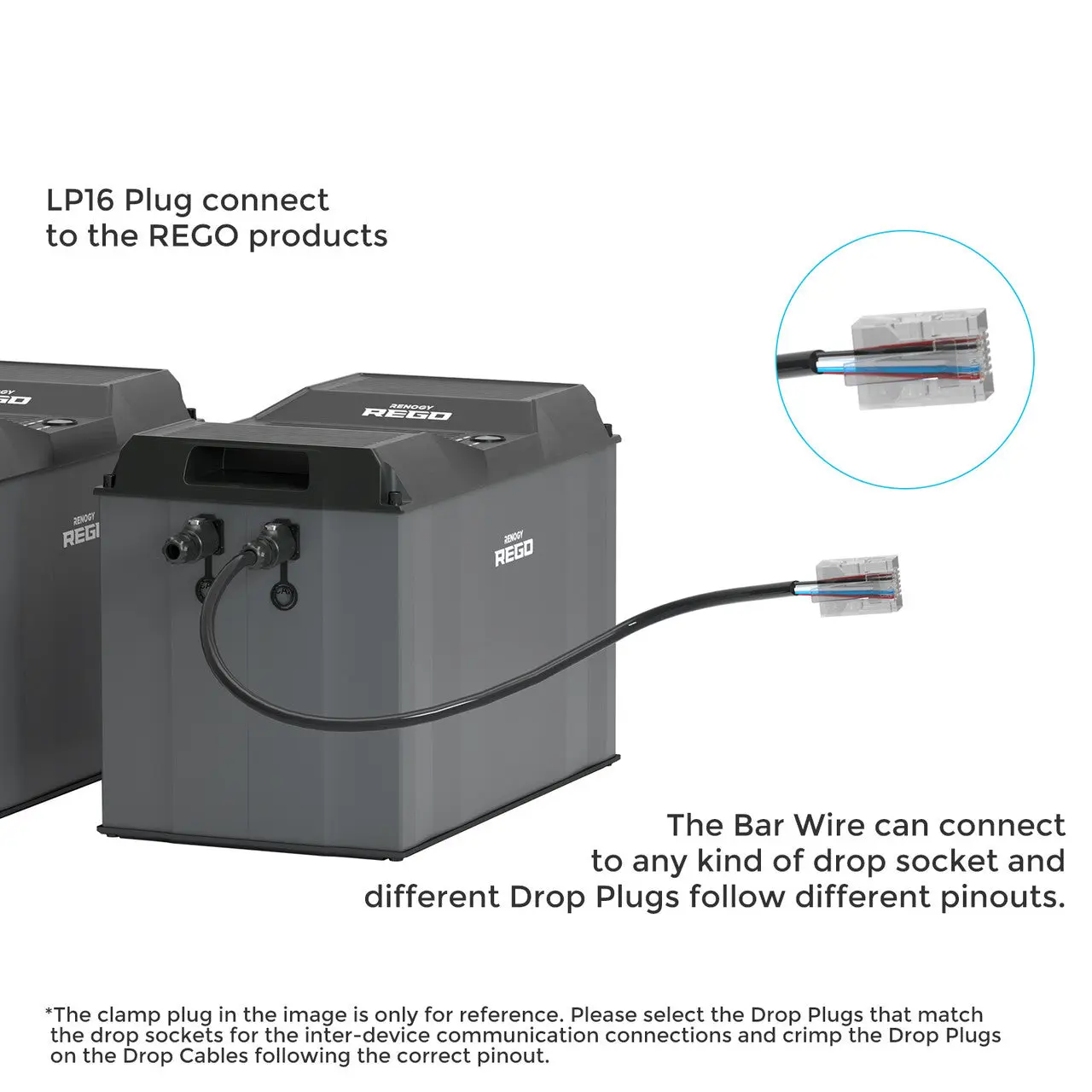

This LP16 Plug (7-Pin) to Bare Wire is used to implement the communication connection between Renogy REGO series products and the RV-C bus in your RV. One end of the communication cable has a professional 7 Pin LP16 connector, which can be connected to the CAN terminal of your REGO series products. And the other end is a bare wire for customization, you can crimp any appropriate connector that matches the RV-C bus on your RV. The inter-device communication between the REGO devices will allow the entire system to dynamically adjust the charging profile for an optimal and safe charge enabling safe operation, smart control, remote monitoring, and programmable settings.

Note: Different drop sockets are used on the RV-C bus by different RV manufacturers. Please select the Drop Plugs that match the drop sockets for the inter-device communication connections. If unsure about the Drop Plug selection, please check with the RV manufacturer.


NOTE
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!


Package Includes

LP16 Plug (7-Pin) to Bare Wire

1 x

ELECTRICAL DATA
Length: 2ft Wire Gauge:: 22AWG*3P+1C
Rated Voltage:: 300V Baud Rate:: 250kbps
Cable Material:: Tinned Copper Wire & PVC Insulated Jacket Terminal Type/Size:: LP16 Plug (7-Pin) - Bare Wire
Temperature Rating:: 80℃/176℉

GENERAL DATA
Certification:: UL、ROHS Warranty:: 1 year

1.Under what conditions should this cable be used?


If the RV-C bus is pre-installed in the RV, you can crimp the bare wire end of the wire with a connector that matches the RV-C bus to realize the RV-C communication connection between the REGO product and the RV.

2.How are the screw ends connected?



3.Do you connect the communication line first or power on first?


Power on first and then connect the communication line.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
