Communication Hub
Description

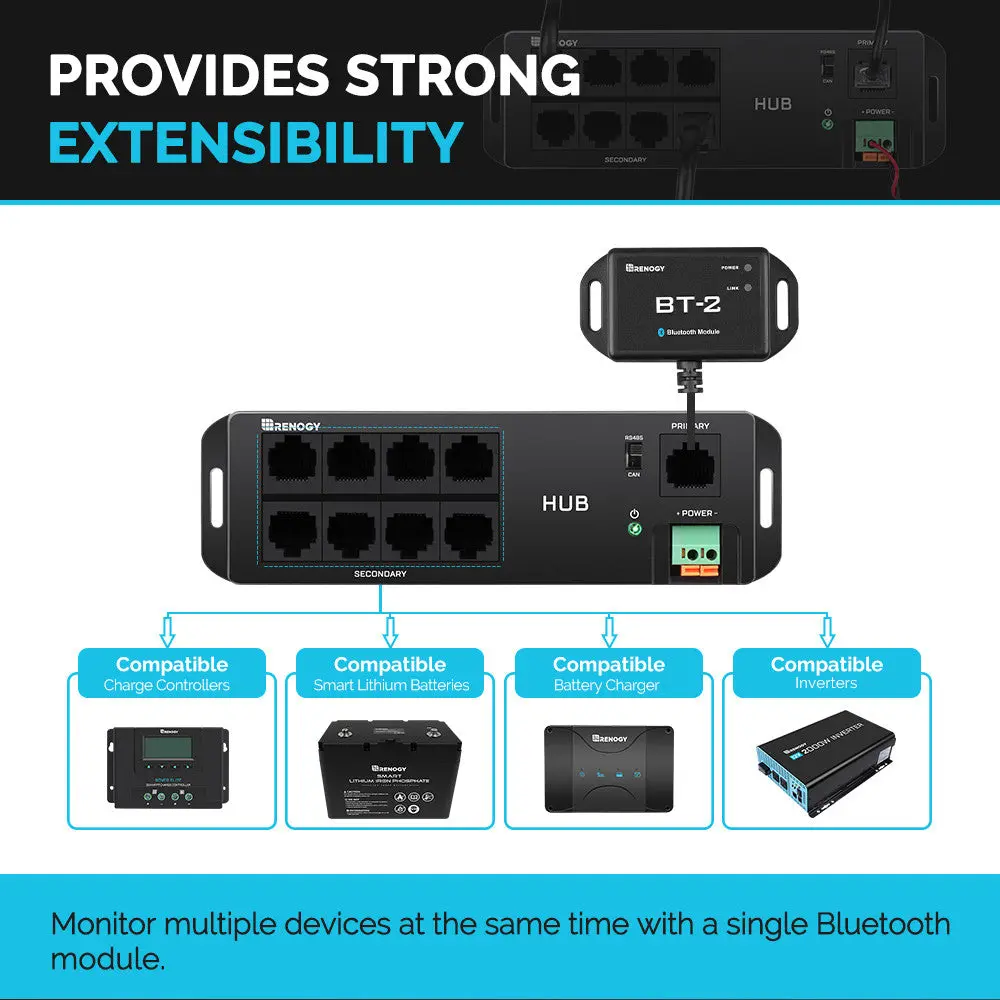

The Renogy Communication Hub allows you to connect multiple Renogy appliances with an RJ45 port and RS485 communication protocol to just one BT-2 Bluetooth module. Now you can use your phone to monitor multiple devices at the same time! The Renogy Communication Hub also supports both RS485 and CAN communication protocols ā giving you a wider selection of compatible devices.
If you have any questions regarding this product, please call us at 1Ā (909) 287-7111 or contact us.
Key Features
- Monitor multiple devices at the same time with a single Bluetooth module.

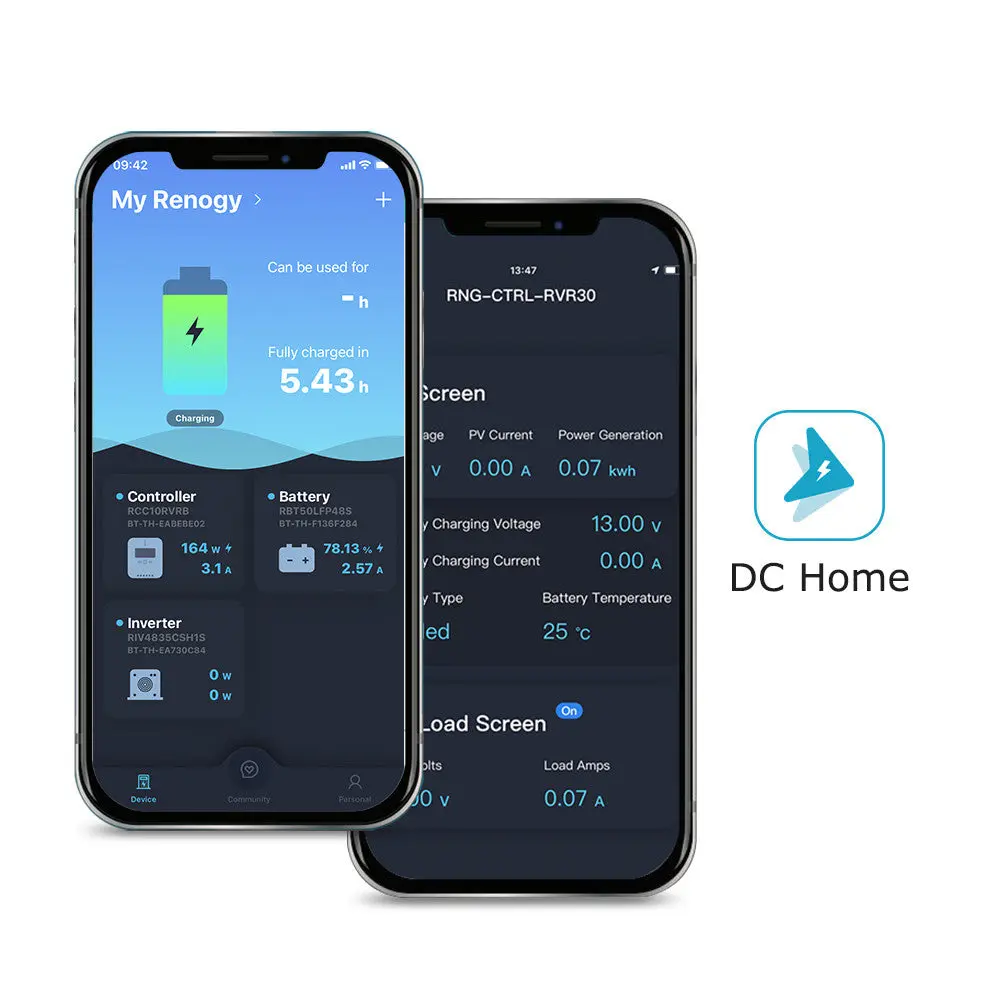

- Connect to our user-friendly smart phone App, Renogy DC Home, to keep track of your system.

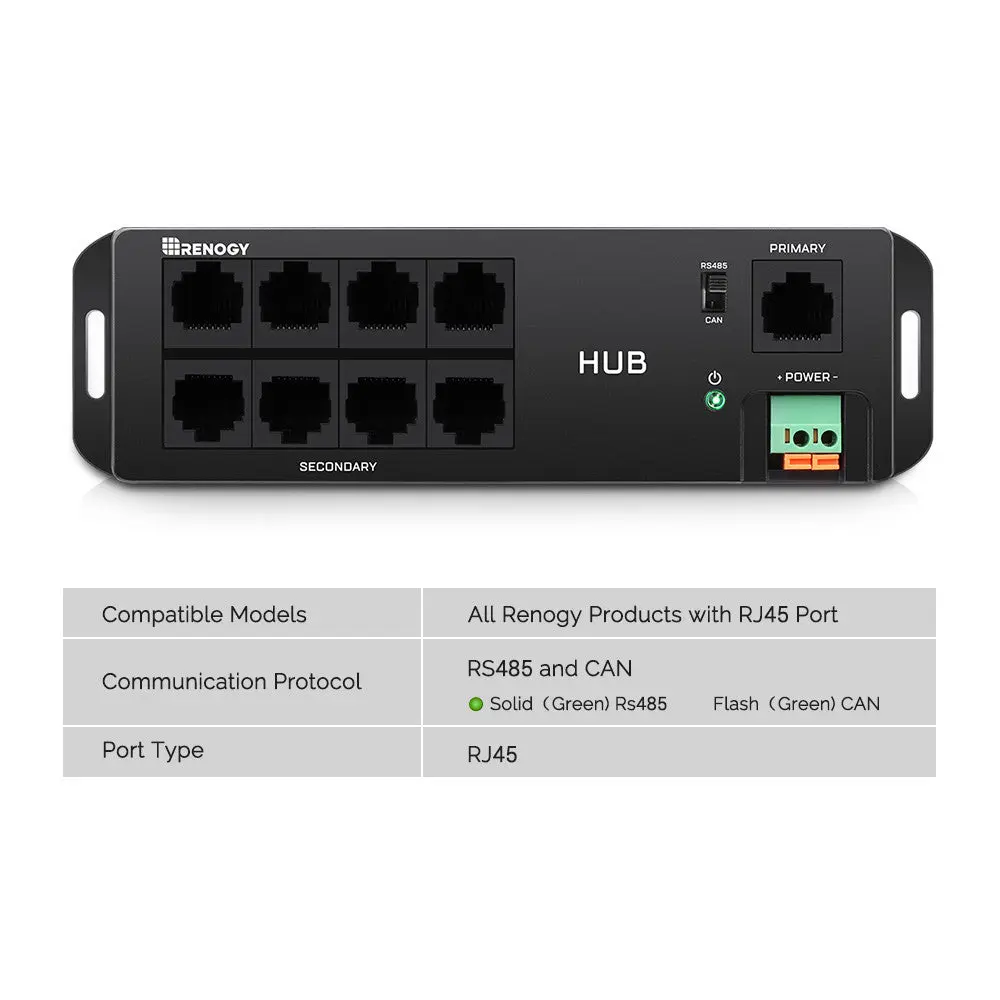

- Supports both RS485 and CAN communication protocol.
- Green LED lights indicate which communication protocol is currently on.
Package Includes
|
Renogy Bluetooth Hub
1 x Ā |
Power Cable
1 x Ā |
| Specifications | Ā |
|---|---|
| Input Voltage:Ā 9V - 60V | Ā Port Type: RJ45 |
| Standby Power Consumption:Ā 0.324W | Cable Length: 5.00m (16.4ft) |

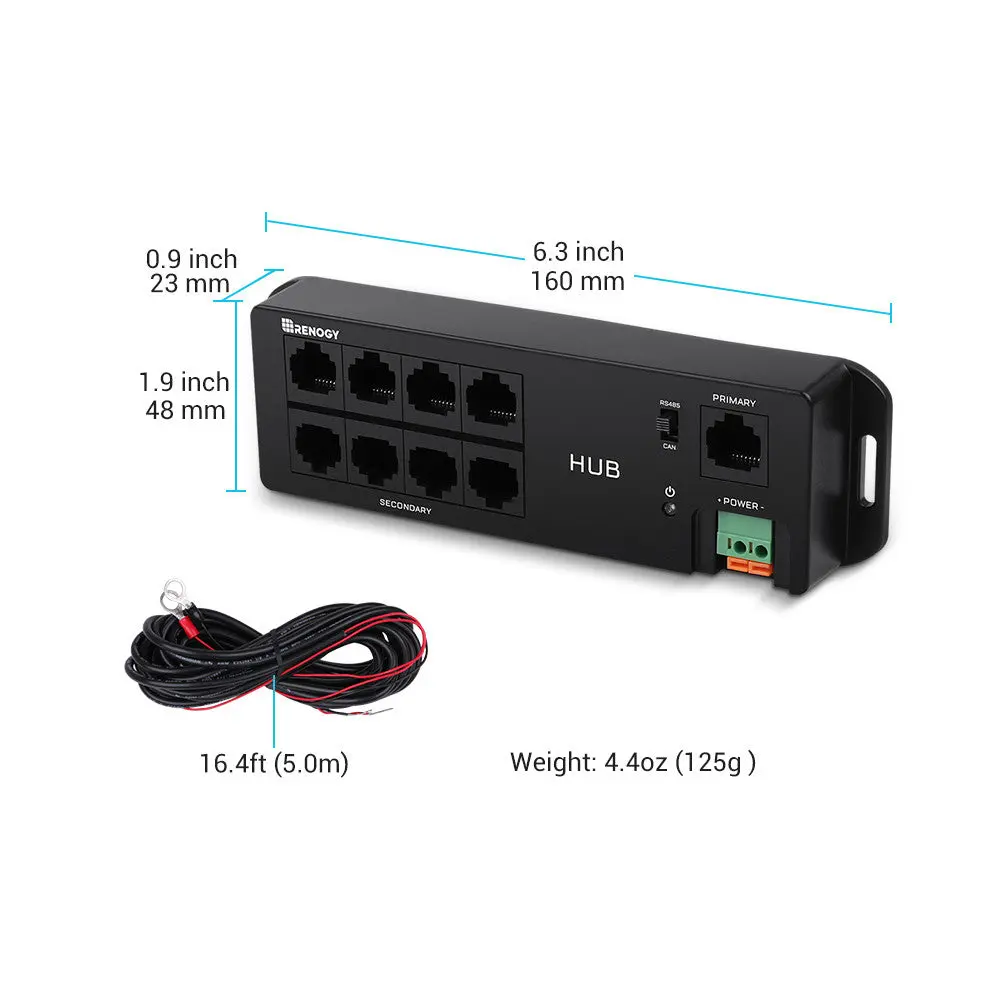

| Operating Power Consumption:Ā <0.35W | Dimension:Ā 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) |
| Communication Range:Ā ā¤82ft | Installation Dimension:Ā 151.4 Ļ3.5mm (5.96 Ļ 0.14in) |
| Serial Baud Rate:Ā RS485-9600 bps CAN-500 kbps | Operation Temperature:Ā -20Ā°C~85Ā°C;(-4Ā°F to 185Ā°F) |
| Communication Protocol:Ā RS485 CAN | Weight:125g (4.41oz) |
Warranty Information
| Accessories | 1-year material and workmanship warranty |
 |
 |
Original: $29.99
-70%$29.99
$9.00Product Information
