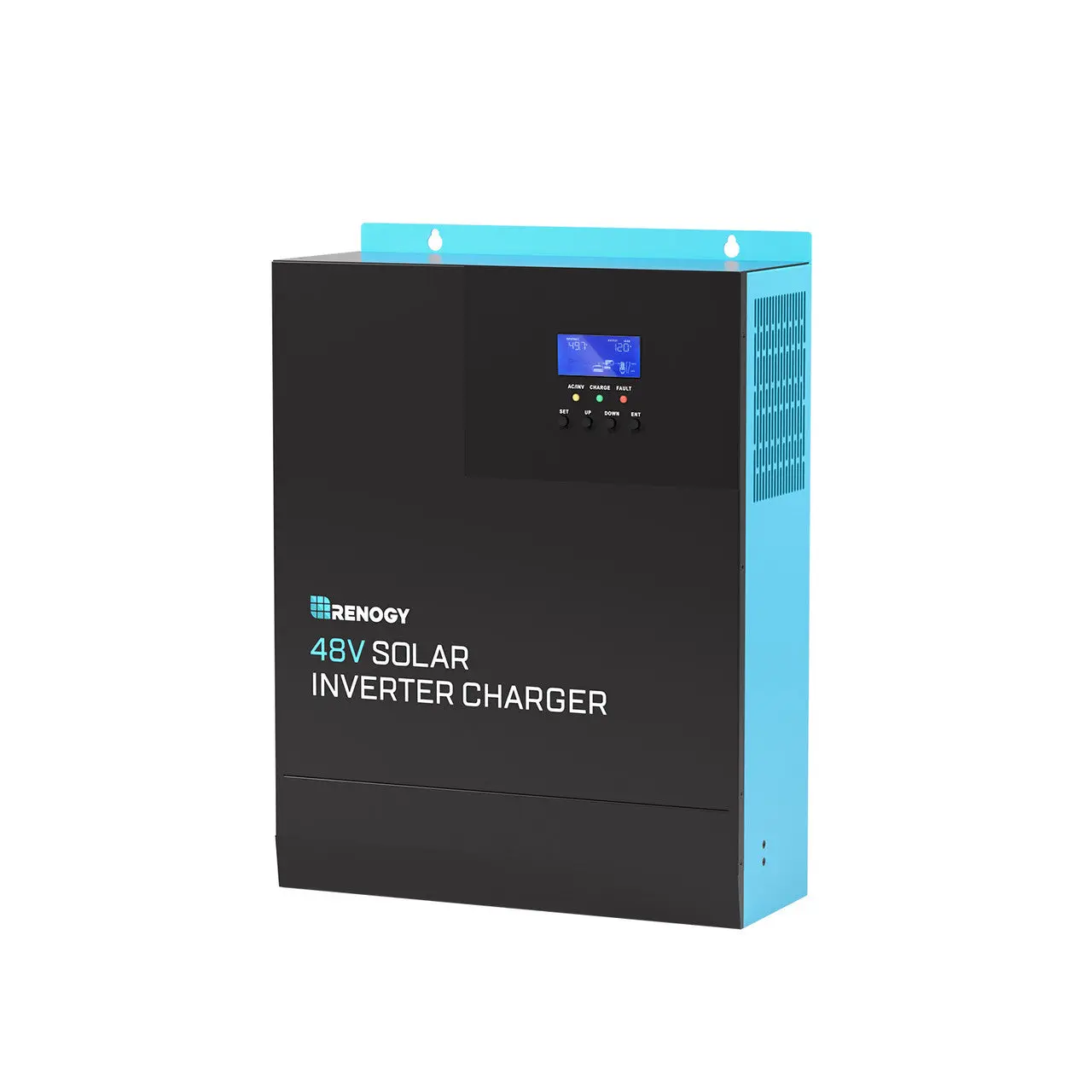

Renogy's 3500W 48V Solar Inverter Charger combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level. Compatible with 48V battery banks, this solar inverter charger gives you the ultimate control with four user-configurable AC/Solar Charging modes and three Load Output modes that can turn your system into an uninterruptible power supply (UPS), automatically switching to Off-Grid Mode in just 10 milliseconds to keep loads securely powered.

Power-packed with the latest MPPT and battery charging technology, you can be sure that the charge controller captures maximum solar energy in real-time and uses the 120A battery charger to ensure the best system performance. This reliable, solar pure sine wave inverter charger has built-in electronic safeguards to protect you and your system. Equipped with multiple features and modes, the Renogy Solar Inverter Charger is a powerful addition to any 48V system!

NOTE

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

Package Includes

NOTE:

Please note that this package does not include cable. You can buy the inverter cable separately. Our recommended specifications for this inverter are: 3ft, 4AWG

48V 3500W Solar Inverter Charger 1 x	Inverter Remote Control 16.4ft X 1

Renogy 48V 3500W Solar Inverter Charger with 80A/145V MPPT
Inverter Mode Specifications		Solar Charging Mode Specifications
Output Waveform	Pure Sine Wave	Charge Controller Type	MPPT
Continuous Output Power	3500W	Maximum Input Power	4800W
Peak Power Rating	7000W	Maximum Input Current	50A
Output Voltage	120VAC±5%	PV Charging Current Range	0-80A
Output Frequency	50 Hz ± 0.3% 60 Hz± 0.3%	Recommended Max. PV Open Circuit Voltage	145VDC
Input Voltage / Rated Battery Voltage	48VDC (minimum start-up voltage 44V)	PV Operating Voltage	60-145VDC
Nominal Efficiency	> 90%	MPPT Voltage Range	60-115VDC
Bypass Breaker Current Load	40A	Short-circuit Protection	Internal Fuse
Idle Consumption	48W	Wiring Protection	Reverse Polarity
Power Saver Mode Idle Consumption	＜25W	Recommended Wiring	4 AWG
AC / Grid Charging Mode Specifications		Mechanical Specifications
Rated Input Voltage/Input Voltage Range	120Vac/90 ~ 140VAC ± 2% Adjustable	Dimensions	16.812.74.9 in / 426322124 mm
Frenquency	50 Hz / 60 Hz (auto detect)	Weight	23.8 lbs /10.8kg
Efficiency	＞95%	Communication Port	RS485/CAN Communication Port (BT-2 Bluetooth Module)
Conversion Time	10ms	Cooling Fan	Yes
Battery Type	Lead Acid and Lithium Battery	Operating Temperature Range	5°F ~ 131°F/ -15°C ~ 55°C
Maximum Charging Current	40A	Storage Temperature	-13°F ~ 140°F / -25°C ~ 60°C
Charging Voltage Range	40-60VDC	Humidity	5% to 95% (three-layer paint protection)
Short-circuit Protection	Breakers and fuses	Noise	≤60dB
Overcharge Protection	Yes. Automatically alerts and turns off charging after 1 min)	IP Grade	IP 20
Reverse Flow Protection	Yes	Safety Class	I

1.What Is an Inverter Charger with MPPT?

It is an Integrated unit wit MPPT solar charge controller, pure sine wave inverter, and battery charger in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances. Renogy's 3500W 48V Solar Inverter Charger combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level.

2. Can I use this inverter to charge my batteries?

Yes. Compatible with 48V battery banks, this solar inverter charger keeps your battery charged with solar panels and AC/generator.

3. Can I use the inverter with a 24V system?

No. This model can only work with 48V battery system.

4. What size inverter should I buy?

1. Sizing the right power output.

Make sure your inverter charger can handle at least 1½ times the load of continuous demand you expect to have regularly. To figure this out, simply add up the wattage of each device you plan on running simultaneously. Be sure the inverters you’re considering will be able to supply enough AC power.

2. Check your battery voltage.

The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 48V battery bank will require an inverter that is compatible with 48V DC input.

3. Size your installation spaces.

What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards.

4. Remote operation is important.

Renogy pure sine inverters come with convenient remote control (BT-2 )and DC HOME APP options so that you can operate the unit from afar.

5. Do I need Modified Sine Wave, or Pure Sine Wave?

Modified sine wave inverters are older technology and generally less expensive. They can be used for many standard appliances but may cause trouble with delicate electronics or audio equipment. Some equipment may work but run hotter than normal.

Pure sine wave inverters are a bigger investment, but much more versatile.

a) Output voltage wave form is pure sine wave with very low harmonic distortion and clean power like utility-supplied electricity.

b) Inductive loads like microwave ovens and motors run faster, quieter and cooler.

c) Reduces audible and electrical noise in fans, fluorescent lights, audio amplifiers, TV, Game consoles, Fax, and answering machines.

d) Prevents crashes in computers, weird print out, and glitches and noise in monitors.

6. How do I hook up the Inverter? What size cable should I use, and is it included?

When connecting the inverter to the battery and solar panels, please read all of the instructions and cautions in the manual before beginning the installation. The minimum recommended wiring gauge for battery wiring is 2AWG, PV wiring is 4AWG, AC input and out wiring is 8AWG.

Incorrect or improper connection points and corroded wires can cause great heat to melt the wire insulation, burning surrounding materials, and even cause fire, so ensure that the connection is tightened

7. Does the Bluetooth Module work with this unit?

Yes, the Bluetooth 2 Module (Model: RCM-BT2) is compatible with the solar inverter. When paired with the DC Home APP you can view system information through your tablet or smart phone.

8. Can I use the solar inverter without batteries when using PV or Mains?

No, at minimum you need to have batteries connected to the unit.

9. Does this solar inverter limit PV current? I'm not getting my full power?

When setting up the solar inverter, ensure Program 36 (PV Charging Current) and Program 7 (Maximum Charge Current) are set to their maximum to ensure no PV current clipping.

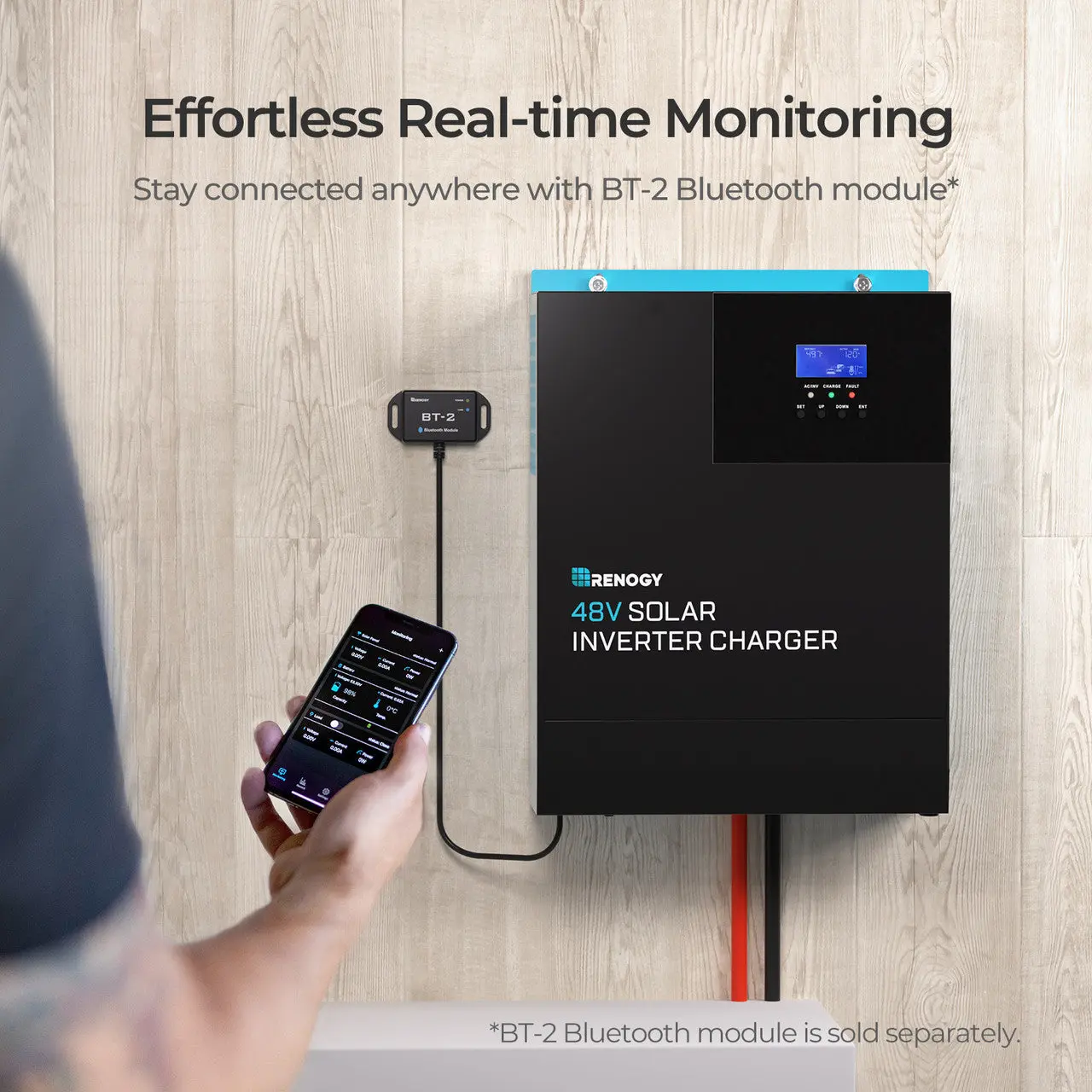

10. Can I use the Bluetooth Module to monitor the inverter from my phone? Which Bluetooth Module should I buy?

Yes, Bluetooth monitoring is supported. If necessary, you can acquire the BT-2 Bluetooth module for monitoring through either the DC Home app or Renogy One M1/Core Monitor.
